FLEX P臺式粒子成像系統，ZebraSCI Flex P無損顆粒檢測系統
型號：FLEX P 類別： 測試測量 品牌：美國ZebraSCI pdf資料: FLEX P臺式粒子成像系統，ZebraSCI Flex P無損顆粒檢測系統.pdf
采購熱線：0755-28917660 15813841944
在線咨詢產品
FLEX P臺式粒子成像系統，ZebraSCI Flex P無損顆粒檢測系統是由美國ZebraSCI研究開發并生產的。
經過驗證的Flex P可無損地解決容器中的顆粒數量和尺寸分布。該系統對計數和跟蹤溶液中的亞可見和可見粒子很敏感。跟蹤算法很重要，因此該機器減少了重復計數，并且可以對溶液中的顆粒進行表征，而其他視覺系統卻被容器上的顆粒和表面缺陷所迷惑。跟蹤算法也很重要，因此氣泡不會被視為顆粒。Flex P系統旨在適應各種常見的主容器尺寸而無需更換零件。Flex P系統核心的光學和自動化與我們的高速衛星系統相同，但設計緊湊且非常適合實驗室環境。
FLEX P臺式粒子成像系統，ZebraSCI Flex P無損顆粒檢測系統規格：
110-240VAC，單相，50 / 60Hz
額定功率：400W（最大）
配方開發
機器尺寸：60cm X 30cm X 53cm
氣壓：90 psi
符合CE要求
FLEX P臺式粒子成像系統，ZebraSCI Flex P無損顆粒檢測系統應用與優點：
在存在各種藥物產品的情況下觀察并計數可見/可見的顆粒
表征溶液中的??分布/數量顆粒
配方開發
穩定性研究
集裝箱資質

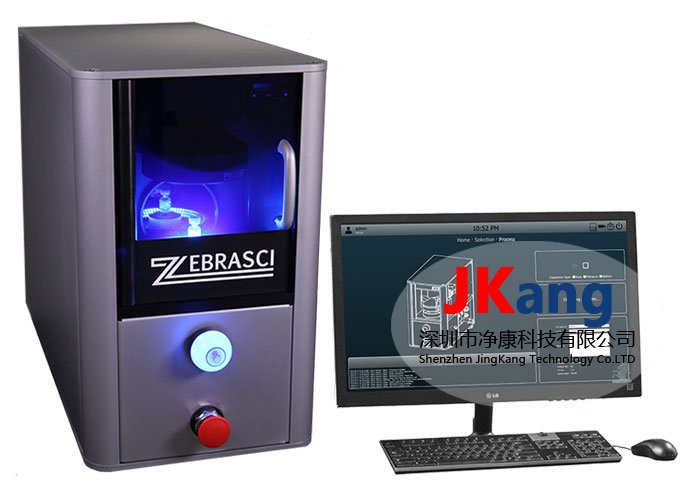

ZebraSCI Flex P– non-destructive particle inspection systems
The Flex P is validated to resolve quantity of particles and distribution of sizes non-destructively in containers. This system is sensitive to count and track sub-visible and visible particles in solution. The tracking algorithms are important so that the machine has reduced double counting as well as particle in solution can be characterized where other vision systems are fooled by particle and surface defects on the container. Also tracking algorithms are important so that air bubbles are not considered particles. The Flex P system is designed to accommodate a range of common primary container sizes without changing parts. The optics and automation at the heart of the Flex P system are the same as our higher speed satellite system, but are designed to be compact and well suited for lab environments.
ZebraSCI Flex P SPECIFICATIONS:
110-240VAC, Single Phase, 50/60Hz
Power Rating: 400W (maximum)
Formulation Development
Machine Dimensions: 60cm X 30cm X 53cm
Pneumatic Pressure: 90 psi
Meets CE requirements
ZebraSCI Flex P APPLICATIONS & BENEFITS:
Observe and count subvisble/visible particles in the presence of various drug product
Characterize the distribution/quantity particles in solution
Formulation Development
Stability Studies
Container qualification
